1. Adopt IPG fiber laser or Raycus fiber laser and laser power supply.
The IPG fiber laser or Raycus fiber laser features a modular and redundant design. It is compact in size and light in weight, making it easy to move. It is also easy to integrate. With stable performance, the overall quality of the product is safely guaranteed.
1、主要基本功能 (Main Basic Functions)
1) 光纖激光器電－光轉化效率高，轉換效率達30%以上，可大幅度節約工作時的耗電，節省運行成本，達到較高的生產效率；
2) 激光器運行時僅僅需要電能，不需要產生激光的額外氣體，具有較低的運行和維護費用；
10）焦點位置可視窗口，確保輸入焦點與輸出焦點準確一致；
1). The fiber laser has a high electro-optical conversion efficiency, with the conversion efficiency reaching over 30%. It can significantly save power consumption during operation, reduce operating costs, and achieve high production efficiency.
2). When the laser operates, it only requires electrical energy and does not need additional gases to generate the laser, resulting in low operating and maintenance costs.
3). The fiber laser adopts a semiconductor modular and redundant design. There are no optical lenses in the resonant cavity, and it does not require a start-up time. It has the advantages of being free of adjustment, maintenance-free, and highly stable, reducing the cost of accessories and maintenance time, which is incomparable to traditional lasers.
4). The output wavelength of the fiber laser is 1.06 micrometers, which is 1/10 of the CO2 wavelength. The output beam has good quality and high power density, which is beneficial for the absorption of metal materials and has excellent cutting and welding capabilities, thus reducing the processing cost.
5). The optical path of the whole machine is transmitted through optical fibers, eliminating the need for complex light guiding systems such as mirrors. The optical path is simple, the structure is stable, and the external optical path is maintenance-free.
6). With the light output through the optical fiber, the design of the mechanical system becomes very simple, and it is very easy to integrate with robots or multi-dimensional worktables.
7). After adding a shutter to the laser, one laser can serve multiple machines. Through optical fiber beam splitting, it can be divided into multiple channels for multiple machines to work simultaneously. It is easy to expand functions, and the upgrade is convenient and simple.
8). The fiber laser is small in size, light in weight, and its working position can be moved, occupying a small area.

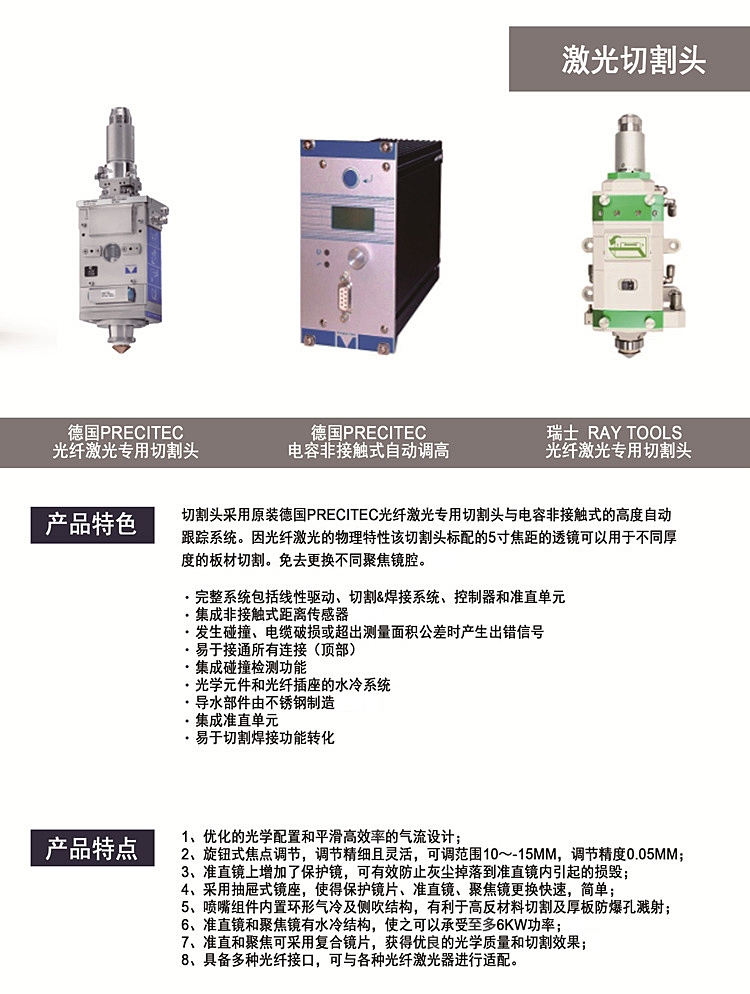

2. Automatic Zoom Laser Head
1). The focal point can be automatically adjusted, suitable for various focal lengths.
2). Capacitive sensing and fully automatic follow-up system.
3). Adopt composite lenses and a built-in water cooling structure.
4). Double water cooling and constant temperature guarantee for the collimation and focusing components.
5). Adopt a drawer-type mirror base for quick replacement of the protective lens; Smooth and efficient air flow design.
6). Compatible with various fiber lasers.
7）. It is universal for short and long focal lengths and can achieve good cutting effects on thin or thick plates.
8）. All are equipped with collimation protective lenses to better protect the collimating lenses.
9）. The QBH circumferential position is adjustable to ensure that the red dot of each QBH faces outward, making it convenient to plug and unplug the optical fiber head.
10）. Visible window for the focal point position to ensure that the input focal point is exactly the same as the output focal point.
三、性能特點：（Performance Characteristics:）
7、進口高精度電控比例閥，精確控制切割輔助氣體的氣壓，以達精確的切割效果。

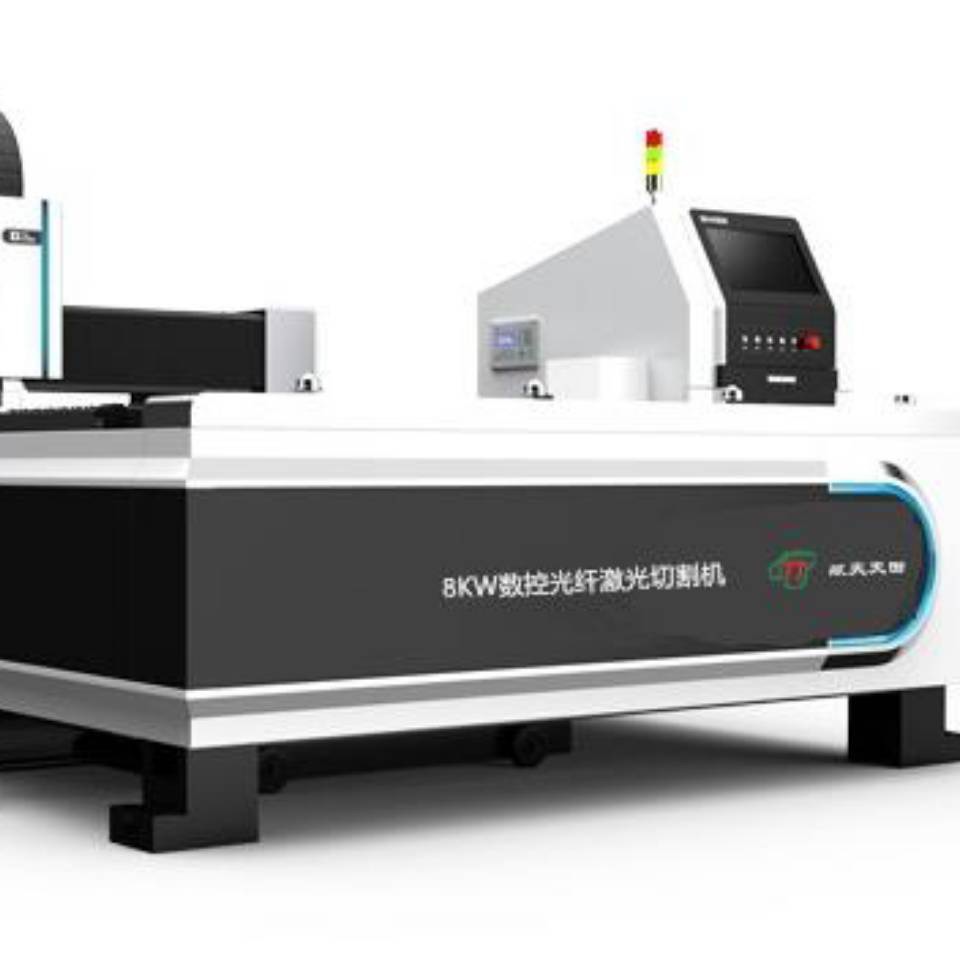

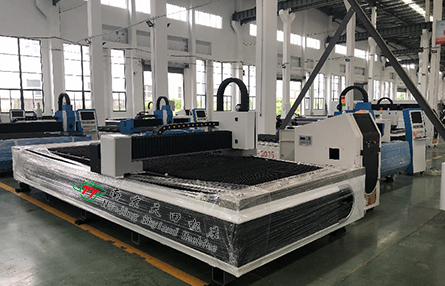

1. Driven by dual servo motors.
2. It has higher stability, higher speed and faster acceleration.
3. Full-digital CNC servo motor communication.
4. This machine adopts a gantry structure, imported reducers and high-precision linear guides. The transmission is stable and the precision is high, which greatly improves the production efficiency of the machine tool.
5. The machine tool adopts an integral welding structure. After annealing, it is roughly processed, and then undergoes vibration aging treatment. This can eliminate the stress from welding and processing. It has good rigidity, high precision and can maintain its shape without deformation after long-term use.
6. The crossbeam is integrally cast from aluminum alloy. After two high-temperature treatments, it is roughly processed. Then, after vibration aging treatment, it is formed through high-precision processing. It has good rigidity, light weight and excellent dynamic performance.
7. Imported high-precision electronically controlled proportional valve accurately controls the air pressure of the cutting auxiliary gas to achieve an accurate cutting effect.
四、激光切割機的基本原理（Basic Principle of the Laser Cutting Machine）：
激光切割的特點：
1、切縫窄，變形小，精度高，速度快，效率高 。
3、相對于沖床，剪板機，它不需要模具，節約了換模具的時間，降低了加工成本。能切割復雜的圖形。
The principle of laser cutting is to focus the laser beam into a very small spot, so that a very high power density is achieved at the focal point. At this time, the heat input by the light beam (converted from light energy) far exceeds the part that is reflected, conducted or diffused by the material. The material is quickly heated to the gasification temperature, and evaporation forms a hole. As the light beam and the material move linearly relative to each other, the hole forms a very narrow slit.
Characteristics of Laser Cutting:
1. Narrow cutting seam, small deformation, high precision, fast speed and high efficiency.
2. Laser cutting is a non-contact processing method with high energy and good density controllability.
3. Compared with punch presses and plate shears, it does not require molds, saving the time for changing molds and reducing the processing cost. It is capable of cutting complex graphics.
V. Technical Parameter Table:

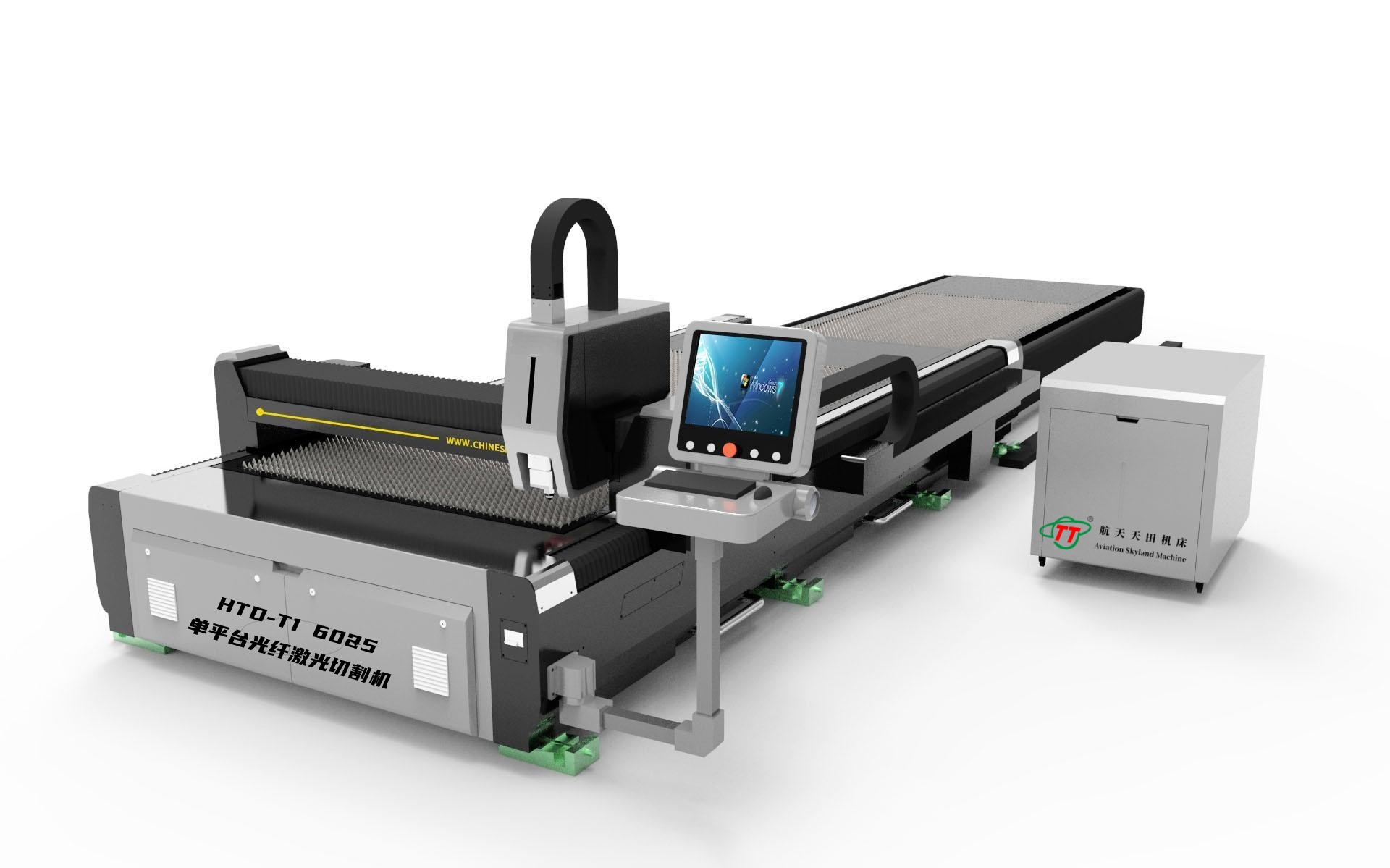

五、技術參數表（Technical Parameter Table）：設備型號 Equipment Model | HTD-T1-3015 | HTD-T1-4015 | HTD-T1-4020 | HTD-T1-6015 | HTD-T1-6020 | HTD-T1-6025 |
加工范圍長*寬 Processing Pipe Diameter (mm) | 3000*1500mm | 4000*1500mm | 4000*2000mm | 6000*1500mm | 6000*2000mm | 6000*2500mm |
X軸行程 Travel of X-axis | 1505mm | 1505mm | 2010mm | 1505mm | 2010mm | 2510mm |
Y軸行程 Travel of Y-axis | 3005mm | 4010mm | 4010mm | 6010mm | 6010mm | 6010mm |
Z軸行程 Travel of Z-axis | 150mm | 150mm | 150mm | 150mm | 150mm | 150mm |
X/Y定位精度 Positioning Accuracy of X/Y Axis | ±0.05mm | ±0.05mm | ±0.05mm | ±0.05mm | ±0.05mm | ±0.05mm |
X/Y重復定位精度 Repeat Positioning Accuracy of X/Y Axis | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm |
X/Y最大加速度 Maximum Speed of X/Y Axis | 1.0-1.5G | 1.0-1.5G | 1.0-1.5G | 1.0-1.5G | 1.0-1.5G | 1.0-1.5G |
高度調節 Height Adjustment | 平面自動跟蹤 （Automatic Planar Tracking） | 平面自動跟蹤 （Automatic Planar Tracking） | 平面自動跟蹤 （Automatic Planar Tracking） | 平面自動跟蹤 （Automatic Planar Tracking） | 平面自動跟蹤 （Automatic Planar Tracking） | 平面自動跟蹤 （Automatic Planar Tracking） |
最小線寬 Minimum Line Width | 0.15mm | 0.15mm | 0.15mm | 0.15mm | 0.15mm | 0.15mm |
工作臺最大載重 Maximum Load Capacity of the Workbench | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm |
最大運行速度 Maximum Operating Speed | 600KG | 650KG | 650KG | 700KG | 700KG | 750KG |
傳動系統 Transmission System | 龍門雙驅 （Gantry - type Dual - drive) | 龍門雙驅 （Gantry - type Dual - drive) | 龍門雙驅 （Gantry - type Dual - drive) | 龍門雙驅 （Gantry - type Dual - drive) | 龍門雙驅 （Gantry - type Dual - drive) | 龍門雙驅 （Gantry - type Dual - drive) |
數控系統 Numerical Control (NC) System | CypCut | CypCut | CypCut | CypCut | CypCut | CypCut |
激光器功率 Laser Power | 1000W-200000W | 1000W-200000W | 1000W-200000W | 1000W-200000W | 1000W-200000W | 1000W-200000W |
外形尺寸（長*寬*高）mm Overall Dimensions (Length × Width × Height) | 4700*2900*1800（mm) | 5600*2900*1800（mm) | 5600*3500*1800（mm) | 7700*2900*1800（mm) | 4700*3400*1800（mm) | 4700*3850*1800（mm) |
以上參數如有變動，恕不另行通知，本公司保留對此資料的最終解釋權！
Remarks: The data listed in this document are for reference only. In case of any discrepancy between these data and the actual data of the machine tool, the actual data of the machine tool shall prevail.
The above parameters are subject to change without prior notice. Our company reserves the right to the final interpretation of this document!
